1.配置需求
配置需求及實現的效果

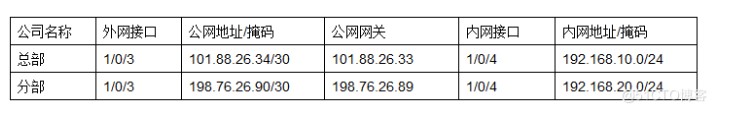

總部和分部各有一臺防火墻部署在互聯網出口，因業務需要兩端內網業務需要通過GRE VPN相互訪問。IP地址及接口規劃如下表所示：
莆田IT外包|服務器虛擬化|數據存儲|數據備份|網絡故障排除|數據恢復 www.xiaolin.cc

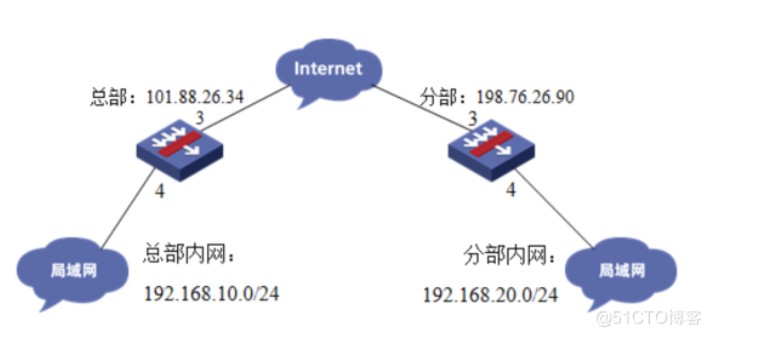

2網絡拓撲圖
莆田IT外包|服務器虛擬化|數據存儲|數據備份|網絡故障排除|數據恢復 www.xiaolin.cc
3.配置步驟
3.1 總部側防火墻基本網絡配置
3.1.1 設置總部側外網接口地址
#輸入命令“system-view”進入系統視圖后為1/0/3接口配置101.88.26.34/30的地址，并配置nat地址轉換。
<H3C>system-view
[H3C]interface GigabitEthe.NET 1/0/3
[H3C-GigabitEthernet1/0/3]ip address 101.88.26.34 255.255.255.252
[H3C-GigabitEthernet1/0/3]nat outbound
[H3C-GigabitEthernet1/0/3]quit
3.1.2 設置總部側內網接口地址
#在1/0/4接口配置連接內網地址192.168.10.1/24。
[H3C]interface GigabitEthernet 1/0/4
[H3C-GigabitEthernet1/0/4]ip address 192.168.10.1 255.255.255.0
[H3C-GigabitEthernet1/0/4]quit
3.1.3 設置總部側到公網路由
#配置默認路由目的地址及掩碼為0.0.0.0、下一跳（網關）地址為101.88.26.33。
[H3C]ip route-static 0.0.0.0 0 101.88.26.33
3.2 總部側GRE VPN配置
3.2.1 新建Tunnel 0隧道接口
#新建Tunnel 0隧道接口，并配置IP地址為1.1.1.1/24，指定Tunnel 0接口源地址與目的地址分別對應總部分支側的公網地址。
[H3C]interface Tunnel 0 mode gre
[H3C-Tunnel0]ip address 1.1.1.1 255.255.255.0
[H3C-Tunnel0]source 101.88.26.34
[H3C-Tunnel0]destination 198.76.26.90
[H3C-Tunnel0]quit
3.2.2 新建到tunnel接口的明細路由
#新建一條目的地址為192.168.20.0/24，下一跳（網關）地址為tunnel0接口的路由，用于匹配去往192.168.20.0/24網段的路由客戶通過隧道轉發。
[H3C]ip route-static 192.168.20.0 24 Tunnel 0
3.3 總部側安全策略配置
莆田IT外包|服務器虛擬化|數據存儲|數據備份|網絡故障排除|數據恢復 www.xiaolin.cc
3.3.1 將外網、內網、tunnel接口加入對應安全
#外網接口加untrust區域、內網接口、tunnel接口加入trust區域。
[H3C]security-zone name Untrust
[H3C-security-zone-Untrust]import interface GigabitEthernet
1/0/3
[H3C-security-zone-Untrust]quit
[H3C]security-zone name Trust
[H3C-security-zone-Trust]import interface GigabitEthernet
1/0/4
[H3C-security-zone-Trust]import interface Tunnel 0
[H3C-security-zone-Trust]quit
3.3.2 放通安全策略使數據通信正常
1. 放通trust到untrust、local的安全策略，使內網用戶訪問網絡的同時能管理防火墻設備。
[H3C]security-policy ip
[H3C-security-policy-ip]rule 5 name trust-untrust、local
[
H3C-security-policy-ip-5-trust-untrust、local]action pass
[
H3C-security-policy-ip-5-trust-untrust、local]source-zone trust
[
H3C-security-policy-ip-5-trust-untrust、local]destination-zone untrust
[
H3C-security-policy-ip-5-trust-untrust、local]destination-zone local
[
H3C-security-policy-ip-5-trust-untrust、local]quit
[H3C-security-policy-ip]quit
2. 放通untrust到trust目的地址為192.168.20.0/24網段到192.168.10.0/24網段的數據
#新建IPV4地址對象組分部網段與總部網段分別對應192.168.20.0/24與192.168.10.0/24網段。
莆田IT外包|服務器虛擬化|數據存儲|數據備份|網絡故障排除|數據恢復 www.xiaolin.cc
[H3C]object-group ip address 分部網段
[H3C-obj-grp-ip-分部網段]0 network subnet 192.168.20.0 255.255.255.0
[H3C-obj-grp-ip-分部網段]quit
[H3C]object-group ip address 總部網段
[H3C-obj-grp-ip-總部網段]0 network subnet 192.168.10.0 255.255.255.0
[H3C-obj-grp-ip-總部網段]quit
#新建IPV4地址對象組 IT外包 服務器虛擬化 數據存儲 數據備份 數據恢復IT外包 服務器虛擬化 數據存儲 數據備份 數據恢復
[H3C]security-policy ip
[H3C-security-policy-ip]rule 10 name untrust-trust
[H3C-security-policy-ip-10-untrust-trust]action pass
[H3C-security-policy-ip-10-untrust-trust]source-zone untrust
[H3C-security-policy-ip-10-untrust-trust]destination-zone trust
[
H3C-security-policy-ip-10-untrust-trust]source-ip分部網段
[
H3C-security-policy-ip-10-untrust-trust]destination-ip總部網段
[H3C-security-policy-ip-10-untrust-trust]quit
[H3C-security-policy-ip]quit
#放通同安全域間的安全策略
[H3C]security-zone intra-zone default permit
3.4 分部側防火墻GRE配置
分部防火墻與總部側防火墻配置方法一致。
3.5 結果測試
#使用總部側PC機PING測試分部側PC機測試：
可以看到在總部側訪問分部數據可達，并且通過“display interface Tunnel 0”可以看到收發包數量。
<H3C>display interface Tunnel 0
Tunnel0
Current
state: UP
Line
protocol state: UP
Description: Tunnel0 Interf?ace
Bandwidth: 64 kbps
Maximum
transmission unit: 1476
Internet
address: 1.1.1.1/24 (primary)
Tunnel
source 101.88.26.34, destination 198.76.26.90
Tunnel
keepalive disabled
Tunnel
TTL 255
Tunnel
protocol/transport GRE/IP
GRE key disabled
Checksumming of GRE packets
disabled
Last
clearing of counters: Never
Last 300
seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec
Last 300
seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec
Input:
5 packets, 420 bytes, 0 drops
Output:
5 packets, 420 bytes, 0 drops
3.6 保存配置
[H3C]save f
