1、獲取SpringBoot內置Tomcat自動配置類：
在SpringBoot項目中引入spring-boot-starter-web依賴，就默認使用Tomcat容器，該依賴中引入
spring-boot-starter-tomcat、spring-webmvc，就引入了tomtcat核心依賴和springMvc相關jar包，這樣就間接地引入了tomcat。
在執行SpringBoot項目啟動類的main()方法，啟動SpringBoot項目的過程中會加載各個jar包下META-INF/spring.factories的文件，在該文件中包含著自動配置的子路徑，在refresh()方法中的
invokeBeanFactoryPostProcessors()中首先會對啟動類上的 @SpringBootApplication 注解進行解析，最終調用 AutoConfigurationImportSelector類中的 getAutoConfigurationEntry() 加載 META-INF/spring.factories 文件中的自動配置類，得到自動配置類的全路徑,其中 org.springframework.boot.autoconfigure.web.servlet.ServletWebServerFactoryAutoConfiguration 為tomcat自動配置類。
具體加載流程見: springBoot-啟動原理 - sun丶牧羊人 - 博客園

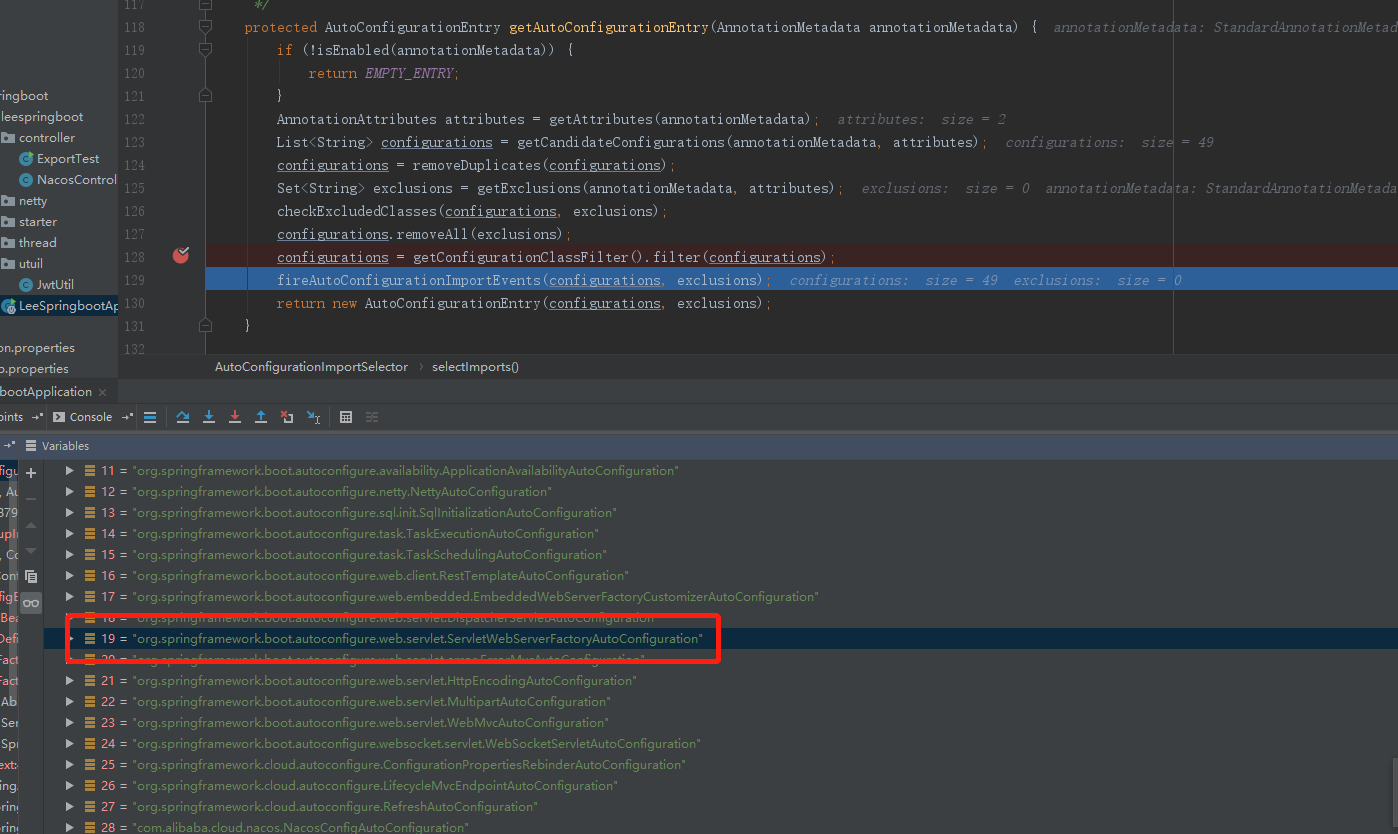

protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
if (!isEnabled(annotationMetadata)) {
return EMPTY_ENTRY;
}
AnnotationAttributes attributes = getAttributes(annotationMetadata);
// 1、得到META-INF/spring.factories文件中配置的所有自動配置類
List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
// 移除重復的配置類
configurations = removeDuplicates(configurations);
// 獲取需要排除的自動配置類，eg:注解屬性中的exculde的配置類
Set<String> exclusions = getExclusions(annotationMetadata, attributes);
// 檢查需要被排除的配置類，因為有些不是自動配置類，需要拋異常
checkExcludedClasses(configurations, exclusions);
// 移除需要排除的配置類
configurations.removeAll(exclusions);
// 根據 META-INF/spring-autoconfigure-metadata.properties 中配置的規則過慮掉一部分配置類(根據@ConditionalOnXXX注解進行過濾)
configurations = getConfigurationClassFilter().filter(configurations);
// 獲取符合條件的配置類后，觸發 AutoConfigurationImportEvent 事件
fireAutoConfigurationImportEvents(configurations, exclusions);
// 將符合條件和需要排除的配置類封裝進 AutoConfigurationEntry 對象中返回
return new AutoConfigurationEntry(configurations, exclusions);
}
2、

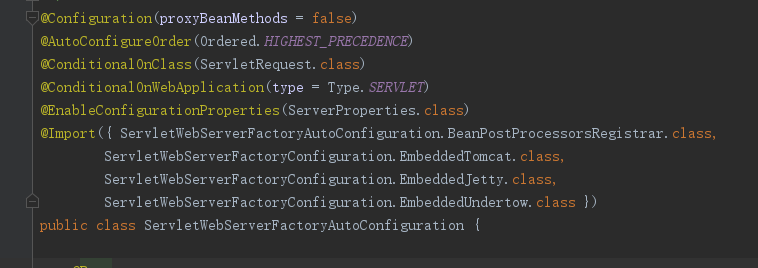

ServletWebServerFactoryAutoConfiguration - tomcat自動配置類分析
3、創建tomcat工廠
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })
@ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
static class EmbeddedTomcat {
@Bean
TomcatServletWebServerFactory tomcatServletWebServerFactory(
ObjectProvider<TomcatConnectorCustomizer> connectorCustomizers,
ObjectProvider<TomcatContextCustomizer> contextCustomizers,
ObjectProvider<TomcatProtocolHandlerCustomizer<?>> protocolHandlerCustomizers) {
// 創建生產tomcat的工廠
TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();
factory.getTomcatConnectorCustomizers()
.addAll(connectorCustomizers.orderedStream().collect(Collectors.toList()));
factory.getTomcatContextCustomizers()
.addAll(contextCustomizers.orderedStream().collect(Collectors.toList()));
factory.getTomcatProtocolHandlerCustomizers()
.addAll(protocolHandlerCustomizers.orderedStream().collect(Collectors.toList()));
return factory;
}
}
4、創建tomcat容器
在SpringBoot啟動過程中會調用
AbstractApplicationContext.refresh() 方法，在該方法會調用onRefresh()方法，這個方法是個模板方法，最終會交給子類實現，在使用內置tomcat的SpringBoot項目中，最終會調用 ServletWebServerApplicationContext 實現(AbstractApplicationContext是GenericWebApplicationContext，ServletWebServerApplicationContext 是GenericWebApplicationContext)，最終調用ServletWebServerApplicationContext 的createWebServer()方法創建 webServer。
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass({ Servlet.class, Tomcat.class, UpgradeProtocol.class })
@ConditionalOnMissingBean(value = ServletWebServerFactory.class, search = SearchStrategy.CURRENT)
protected void onRefresh() {
// 調用 GenericWebApplicationContext類的 onRefresh() 方法，
super.onRefresh();
try {
// 獲取嵌入式的Servlet容器工廠(TomcatServletWebServerFactory)，并通過工廠來獲取Servlet容器
createWebServer();
}
catch (Throwable ex) {
throw new ApplicationContextException("Unable to start web server", ex);
}
}
private void createWebServer() {
WebServer webServer = this.webServer;
ServletContext servletContext = getServletContext();
if (webServer == null && servletContext == null) {
StartupStep createWebServer = this.getApplicationStartup().start("spring.boot.webserver.create");
// 獲取 Servlet容器工廠
ServletWebServerFactory factory = getWebServerFactory();
createWebServer.tag("factory", factory.getClass().toString());
// 通過Servlet容器工廠加載tomcat并啟動tomcat
this.webServer = factory.getWebServer(getSelfInitializer());
createWebServer.end();
getBeanFactory().registerSingleton("webServerGracefulShutdown",
new WebServerGracefulShutdownLifecycle(this.webServer));
getBeanFactory().registerSingleton("webServerStartStop",
new WebServerStartStopLifecycle(this, this.webServer));
}
else if (servletContext != null) {
try {
getSelfInitializer().onStartup(servletContext);
}
catch (ServletException ex) {
throw new ApplicationContextException("Cannot initialize servlet context", ex);
}
}
initPropertySources();
}
在 TomcatServletWebServerFactory 類中
@Override
public WebServer getWebServer(ServletContextInitializer... initializers) {
if (this.disableMBeanRegistry) {
Registry.disableRegistry();
}
// 實例化tomcat
Tomcat tomcat = new Tomcat();
File baseDir = (this.baseDirectory != null) ? this.baseDirectory : createTempDir("tomcat");
// 設置tomcat臨時工作目錄
tomcat.setBaseDir(baseDir.getAbsolutePath());
// 默認使用 org.Apache.coyote.http11.Http11NioProtocol 實例化Connector
Connector connector = new Connector(this.protocol);
connector.setThrowOnFailure(true);
// 給service添加Connector
tomcat.getService().addConnector(connector);
customizeConnector(connector);
tomcat.setConnector(connector);
// 關閉熱部署
tomcat.getHost().setAutoDeploy(false);
// 配置 Engine
configureEngine(tomcat.getEngine());
for (Connector additionalConnector : this.additionalTomcatConnectors) {
tomcat.getService().addConnector(additionalConnector);
}
prepareContext(tomcat.getHost(), initializers);
// 實例化 TomcatWebServer，將 DispatcherServlet 以及一些Filter添加到Tomcat中
return getTomcatWebServer(tomcat);
}
protected TomcatWebServer getTomcatWebServer(Tomcat tomcat) {
return new TomcatWebServer(tomcat, getPort() >= 0, getShutdown());
}
//TomcatWebServer類的構造方法
public TomcatWebServer(Tomcat tomcat, boolean autoStart, Shutdown shutdown) {
Assert.notNull(tomcat, "Tomcat Server must not be null");
this.tomcat = tomcat;
this.autoStart = autoStart;
this.gracefulShutdown = (shutdown == Shutdown.GRACEFUL) ? new GracefulShutdown(tomcat) : null;
initialize();
}
private void initialize() throws WebServerException {
logger.info("Tomcat initialized with port(s): " + getPortsDescription(false));
synchronized (this.monitor) {
try {
addInstanceIdToEngineName();
Context context = findContext();
context.addLifecycleListener((event) -> {
if (context.equals(event.getSource()) && Lifecycle.START_EVENT.equals(event.getType())) {
// Remove service connectors so that protocol binding doesn't
// happen when the service is started.
removeServiceConnectors();
}
});
// Start the server to trigger initialization listeners
//利用LifecycleBase對這一套容器（engine，host，context及wrapper）進行啟動并發布configure_start、
// before_init、after_start的lifecycleEvent等事件給相應的監聽器
// 本方法并沒有啟動tomcat
this.tomcat.start();
// We can re-throw failure exception directly in the main thread
rethrowDeferredStartupExceptions();
try {
ContextBindings.bindClassLoader(context, context.getNamingToken(), getClass().getClassLoader());
}
catch (NamingException ex) {
// Naming is not enabled. Continue
}
// Unlike Jetty, all Tomcat threads are daemon threads. We create a
// blocking non-daemon to stop immediate shutdown
startDaemonAwaitThread();
}
catch (Exception ex) {
stopSilently();
destroySilently();
throw new WebServerException("Unable to start embedded Tomcat", ex);
}
}
}
// Tomcat類
public void start() throws LifecycleException {
getServer();
server.start();
}
// LifecycleBase
public final synchronized void start() throws LifecycleException {
if (LifecycleState.STARTING_PREP.equals(state) || LifecycleState.STARTING.equals(state) ||
LifecycleState.STARTED.equals(state)) {
if (log.isDebugEnabled()) {
Exception e = new LifecycleException();
log.debug(sm.getString("lifecycleBase.alreadyStarted", toString()), e);
} else if (log.isInfoEnabled()) {
log.info(sm.getString("lifecycleBase.alreadyStarted", toString()));
}
return;
}
if (state.equals(LifecycleState.NEW)) {
init();
} else if (state.equals(LifecycleState.FAILED)) {
stop();
} else if (!state.equals(LifecycleState.INITIALIZED) &&
!state.equals(LifecycleState.STOPPED)) {
invalidTransition(Lifecycle.BEFORE_START_EVENT);
}
try {
setStateInternal(LifecycleState.STARTING_PREP, null, false);
startInternal();
if (state.equals(LifecycleState.FAILED)) {
// This is a 'controlled' failure. The component put itself into the
// FAILED state so call stop() to complete the clean-up.
stop();
} else if (!state.equals(LifecycleState.STARTING)) {
// Shouldn't be necessary but acts as a check that sub-classes are
// doing what they are supposed to.
invalidTransition(Lifecycle.AFTER_START_EVENT);
} else {
setStateInternal(LifecycleState.STARTED, null, false);
}
} catch (Throwable t) {
// This is an 'uncontrolled' failure so put the component into the
// FAILED state and throw an exception.
handleSubClassException(t, "lifecycleBase.startFail", toString());
}
}
5、啟動tomcat容器
創建webServer后在refresh()方法中的finishRefresh()完成tomcat的啟動。
最終會調用 TomcatWebServer中的start()方法啟動tomcat容器。
protected void finishRefresh() {
// Clear context-level resource caches (such as ASM metadata from scanning).
clearResourceCaches();
// Initialize lifecycle processor for this context.
initLifecycleProcessor();
// Propagate refresh to lifecycle processor first.
// 啟動tomcat
getLifecycleProcessor().onRefresh();
// Publish the final event.
publishEvent(new ContextRefreshedEvent(this));
// Participate in LiveBeansView MBean, if active.
if (!NativeDetector.inNativeImage()) {
LiveBeansView.registerApplicationContext(this);
}
}
@Override
public void onRefresh() {
startBeans(true);
this.running = true;
}
private void startBeans(boolean autoStartupOnly) {
Map<String, Lifecycle> lifecycleBeans = getLifecycleBeans();
Map<Integer, LifecycleGroup> phases = new TreeMap<>();
lifecycleBeans.forEach((beanName, bean) -> {
if (!autoStartupOnly || (bean instanceof SmartLifecycle && ((SmartLifecycle) bean).isAutoStartup())) {
int phase = getPhase(bean);
phases.computeIfAbsent(
phase,
p -> new LifecycleGroup(phase, this.timeoutPerShutdownPhase, lifecycleBeans, autoStartupOnly)
).add(beanName, bean);
}
});
if (!phases.isEmpty()) {
// 遍歷啟動
phases.values().forEach(LifecycleGroup::start);
}
}
public void start() {
if (this.members.isEmpty()) {
return;
}
if (logger.isDebugEnabled()) {
logger.debug("Starting beans in phase " + this.phase);
}
Collections.sort(this.members);
for (LifecycleGroupMember member : this.members) {
doStart(this.lifecycleBeans, member.name, this.autoStartupOnly);
}
}
private void doStart(Map<String, ? extends Lifecycle> lifecycleBeans, String beanName, boolean autoStartupOnly) {
Lifecycle bean = lifecycleBeans.remove(beanName);
if (bean != null && bean != this) {
String[] dependenciesForBean = getBeanFactory().getDependenciesForBean(beanName);
for (String dependency : dependenciesForBean) {
doStart(lifecycleBeans, dependency, autoStartupOnly);
}
if (!bean.isRunning() &&
(!autoStartupOnly || !(bean instanceof SmartLifecycle) || ((SmartLifecycle) bean).isAutoStartup())) {
if (logger.isTraceEnabled()) {
logger.trace("Starting bean '" + beanName + "' of type [" + bean.getClass().getName() + "]");
}
try {
bean.start();
}
catch (Throwable ex) {
throw new ApplicationContextException("Failed to start bean '" + beanName + "'", ex);
}
if (logger.isDebugEnabled()) {
logger.debug("Successfully started bean '" + beanName + "'");
}
}
}
}
//WebServerStartStopLifecycle 中start() 方法的實現
public void start() {
this.weServerManager.start();
this.running = true;
}
void start() {
this.handler.initializeHandler();
this.webServer.start();
this.applicationContext
.publishEvent(new ReactiveWebServerInitializedEvent(this.webServer, this.applicationContext));
}
// 完成對tomcat的啟動
@Override
public void start() throws WebServerException {
synchronized (this.monitor) {
if (this.started) {
return;
}
try {
addPreviouslyRemovedConnectors();
Connector connector = this.tomcat.getConnector();
if (connector != null && this.autoStart) {
performDeferredLoadOnStartup();
}
checkThatConnectorsHaveStarted();
this.started = true;
logger.info("Tomcat started on port(s): " + getPortsDescription(true) + " with context path '"
+ getContextPath() + "'");
}
catch (ConnectorStartFailedException ex) {
stopSilently();
throw ex;
}
catch (Exception ex) {
PortInUseException.throwIfPortBindingException(ex, () -> this.tomcat.getConnector().getPort());
throw new WebServerException("Unable to start embedded Tomcat server", ex);
}
finally {
Context context = findContext();
ContextBindings.unbindClassLoader(context, context.getNamingToken(), getClass().getClassLoader());
}
}
}
同博客: SpringBoot內置Tomcat啟動原理源碼分析 - sun丶牧羊人 - 博客園
