華為ar路由器配置一對一NAT，靜態NAT

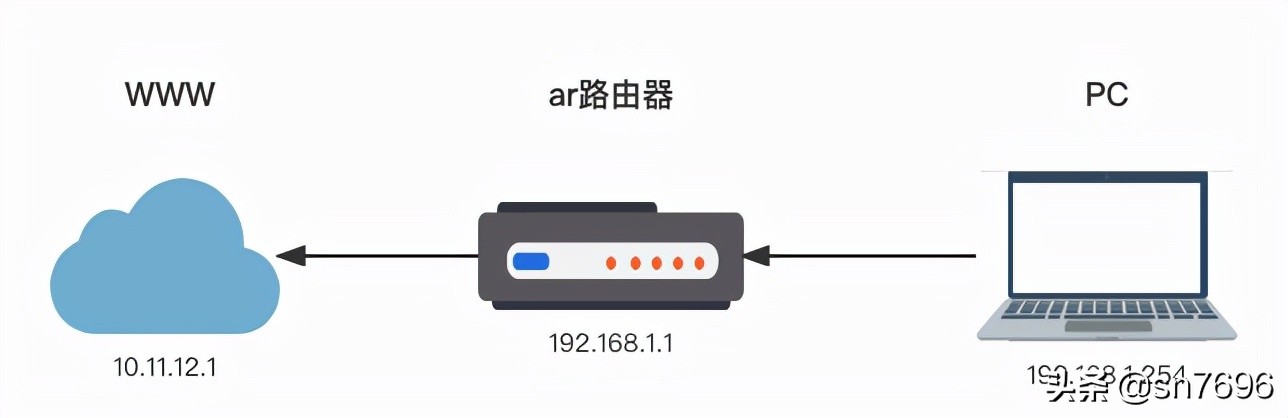

靜態NAT

有些環境需要單獨指定公網IP地址上網，可以使用靜態NAT的方式來實現

1、AR路由器的配置

<Huawei>system-view  #進入系統視圖
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname ar  #修改名稱
[ar]interface  GigabitEthernet  0/0/1  #進入接口0/0/1
[ar-GigabitEthernet0/0/1]ip address  10.11.12.100 24  #配置IP地址及子網掩碼

[ar-GigabitEthernet0/0/1]ping 10.11.12.1   #檢測連通性
  PING 10.11.12.1: 56  data bytes, press CTRL_C to break
    Reply from 10.11.12.1: bytes=56 Sequence=1 ttl=128 time=70 ms
    Reply from 10.11.12.1: bytes=56 Sequence=2 ttl=128 time=20 ms
    Reply from 10.11.12.1: bytes=56 Sequence=3 ttl=128 time=10 ms
    Reply from 10.11.12.1: bytes=56 Sequence=4 ttl=128 time=20 ms
    Reply from 10.11.12.1: bytes=56 Sequence=5 ttl=128 time=10 ms

  --- 10.11.12.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 10/26/70 ms

[ar-GigabitEthernet0/0/1]quit  #退出
[ar]ip route-static 0.0.0.0 0.0.0.0 10.11.12.1   #配置默認路由，指向外網網關

2、配置PC的IP地址及網關等

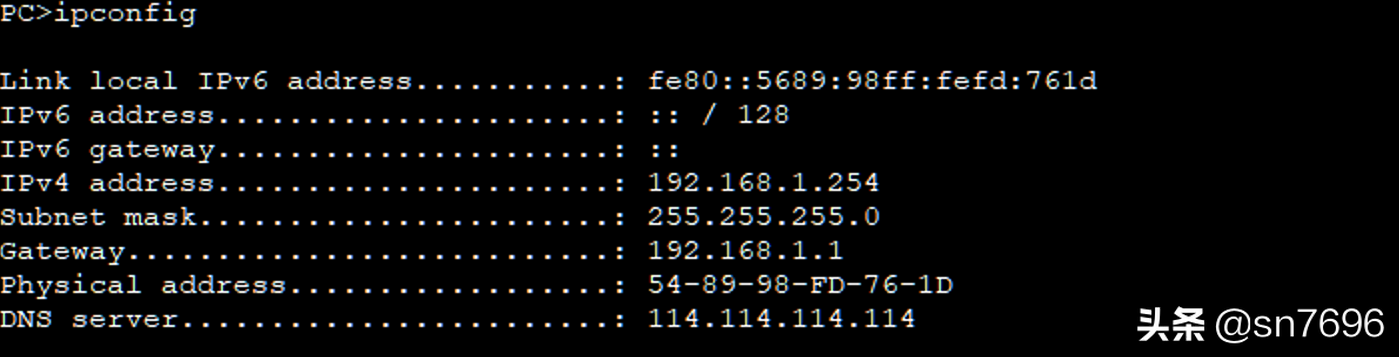

配置pc的IP地址和網關等信息

3、配置內網的網關等信息

[ar]interface GigabitEthernet 0/0/0  #進入接口0/0/0
[ar-GigabitEthernet0/0/0]ip add 192.168.1.1 24  #配置IP地址及子網掩碼

[ar-GigabitEthernet0/0/0]ping 192.168.1.254  #檢測連通性
  PING 192.168.1.254: 56  data bytes, press CTRL_C to break
    Reply from 192.168.1.254: bytes=56 Sequence=1 ttl=128 time=40 ms
    Reply from 192.168.1.254: bytes=56 Sequence=2 ttl=128 time=10 ms
    Reply from 192.168.1.254: bytes=56 Sequence=3 ttl=128 time=10 ms
    Reply from 192.168.1.254: bytes=56 Sequence=4 ttl=128 time=20 ms
    Reply from 192.168.1.254: bytes=56 Sequence=5 ttl=128 time=20 ms

  --- 192.168.1.254 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 10/20/40 ms

[ar-GigabitEthernet0/0/0]quit  #退出接口

4、配置nat一對一映射

[ar]interface  GigabitEthernet  0/0/1  #進入接口0/0/0
[ar-GigabitEthernet0/0/1]nat static global 10.11.12.101 inside  192.168.1.254  #配置外網地址及內網地址的靜態映射
[ar-GigabitEthernet0/0/1]quit  #退出接口

5、查看靜態NAT映射信息

[ar]display  nat  static  #查看靜態nat信息
  Static Nat Information:
  Interface  : GigabitEthernet0/0/1
    Global IP/Port     : 10.11.12.101/----
    Inside IP/Port     : 192.168.1.254/----
    Protocol : ----
    VPN instance-name  : ----
    Acl number         : ----
    Netmask  : 255.255.255.255
    Description : ----

  Total :    1
