對于較多數量的文件描述符的監聽無論是select還是poll系統調用都顯得捉襟見肘，poll每次都需要將所有的文件描述符復制到內核，內核本身不會對這些文件描述符加以保存，這樣的設計就導致了poll的效率的低下。

而epoll則對此做了相應的改進，不是epoll_wait的時候才傳入fd，而是通過epoll_ctl把所有fd傳入內核，再一起”wait”，這就省掉了不必要的重復拷貝。

其次，在 epoll_wait時，也不是把current輪流地加入fd對應的設備等待隊列，而是在設備等待隊列醒來時調用一個回調函數（當然，這就需要“喚醒回調”機制），把產生事件的fd歸入一個鏈表，然后返回這個鏈表上的fd。另外，epoll機制實現了自己特有的文件系統eventpoll filesystem。

epoll初始化

當系統啟動時，epoll會進行初始化操作：

static int __init eventpoll_init(void)
{
    mutex_init(&epmutex);

    /* Initialize the structure used to perform safe poll wait head wake ups */
    ep_poll_safewake_init(&psw);

    /* Allocates slab cache used to allocate "struct epitem" items */
    epi_cache = kmem_cache_create("eventpoll_epi", sizeof(struct epitem),
            0, SLAB_HWCACHE_ALIGN|EPI_SLAB_DEBUG|SLAB_PANIC,
            NULL);

    /* Allocates slab cache used to allocate "struct eppoll_entry" */
    pwq_cache = kmem_cache_create("eventpoll_pwq",
            sizeof(struct eppoll_entry), 0,
            EPI_SLAB_DEBUG|SLAB_PANIC, NULL);

    return 0;
}
fs_initcall(eventpoll_init);

上面的代碼實現一些數據結構的初始化,通過fs/eventpoll.c中的注釋可以看出,有三種類型的鎖機制使用場景:

1.epmutex(mutex):用戶關閉文件描述符，但是沒有調用EPOLL_CTL_DEL
2.ep->mtx(mutex):用戶態與內核態的轉換可能會睡眠
3.ep->lock(spinlock):內核態與具體設備中斷過程中的轉換,poll回調

接下來就是使用slab分配器動態分配內存，第一個結構為當系統中添加一個fd時，就創建一epitem結構體,內核管理的基本數據結構。

內核數據結構

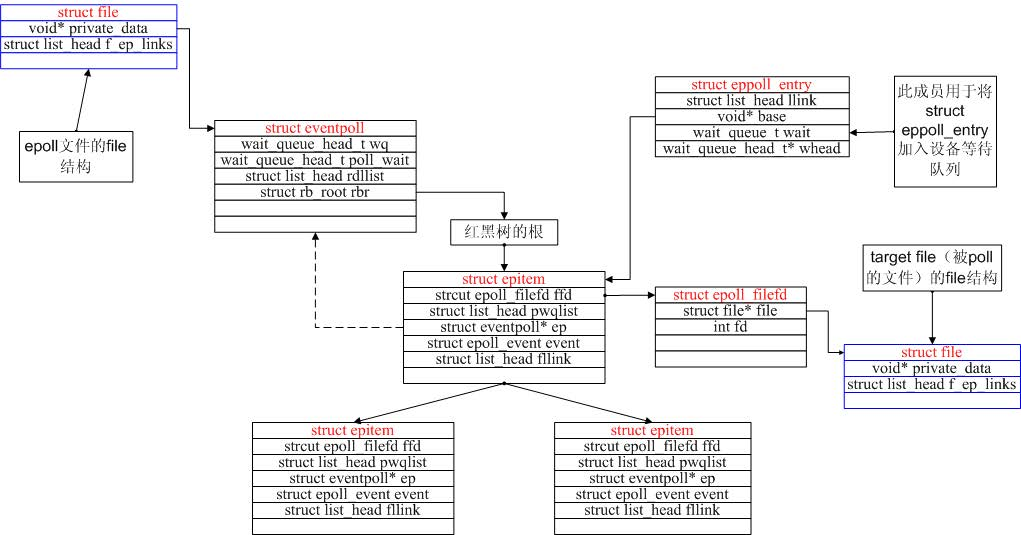

epoll在內核主要維護了兩個數據結構eventpoll與epitem，其中eventpoll表示每個epoll實例本身，epitem表示的是每一個IO所對應的的事件。

struct epitem {
    /* RB tree node used to link this structure to the eventpoll RB tree */
    struct rb_node rbn; /*用于掛載到eventpoll管理的紅黑樹*/

    /* List header used to link this structure to the eventpoll ready list */
    struct list_head rdllink; /*掛載到eventpoll.rdlist的事件就緒隊列*/

    /*
     * Works together "struct eventpoll"->ovflist in keeping the
     * single linked chain of items.
     */
    struct epitem *next; /*用于主結構體中的鏈表*/

    /* The file descriptor information this item refers to */
    struct epoll_filefd ffd; /*該結構體對應的被監聽的文件描述符信息(fd+file， 作為紅黑樹的key)*/

    /* Number of active wait queue attached to poll operations */
    int nwait;  /*poll(輪詢操作)的事件個數

    /* List containing poll wait queues */
    struct list_head pwqlist; /*雙向鏈表，保存被監視文件的等待隊列，功能類似于select/poll中的poll_table；同一個文件上可能會監視多種事件，這些事件可能從屬于不同的wait_queue中，所以需要使用鏈表

    /* The "container" of this item */
    struct eventpoll *ep; /*當前epitem的所有者（多個epitem從屬于一個eventpoll）*/

    /* List header used to link this item to the "struct file" items list */
    struct list_head fllink; /*雙向鏈表，用來鏈接被監視的文件描述符對應的struct file。因?yàn)閒ile里有f_ep_link用來保存所有監視這個文件的epoll節點

    /* The structure that describe the interested events and the source fd */
    struct epoll_event event; /*注冊感興趣的事件，也就是用戶空間的epoll_event
};

而每個epoll fd對應的主要數據結構為：

struct eventpoll {
    /* Protect the this structure access */
    spinlock_t lock; /*自旋鎖，在kernel內部用自旋鎖加鎖，就可以同時多線(進)程對此結構體進行操作，主要是保護ready_list*/

    /*
     * This mutex is used to ensure that files are not removed
     * while epoll is using them. This is held during the event
     * collection loop, the file cleanup path, the epoll file exit
     * code and the ctl operations.
     */
    struct mutex mtx; /*防止使用時被刪除*/

    /* Wait queue used by sys_epoll_wait() */
    wait_queue_head_t wq; /*sys_epoll_wait()使用的等待隊列*/

    /* Wait queue used by file->poll() */
    wait_queue_head_t poll_wait; /*file->epoll()使用的等待隊列*/

    /* List of ready file descriptors */
    struct list_head rdllist; /*事件就緒鏈表*/

    /* RB tree root used to store monitored fd structs */
    struct rb_root rbr; /*用于管理當前epoll關注的文件描述符（樹根）*/

    /*
     * This is a single linked list that chains all the "struct epitem" that
     * hAppened while transfering ready events to userspace w/out
     * holding ->lock.
     */
    struct epitem *ovflist; /*在向用戶空間傳輸就緒事件的時候，將同時發生事件的文件描述符鏈入到這個鏈表里面*/
};

函數調用關系

epoll_create

每個eventpoll通過epoll_create()創建：

asmlinkage long sys_epoll_create(int size)
{
    int error, fd = -1;
    struct eventpoll *ep;

    DNPRINTK(3, (KERN_INFO "[%p] eventpoll: sys_epoll_create(%d)n",
             current, size));

    /*
     * Sanity check on the size parameter, and create the internal data
     * structure ( "struct eventpoll" ).
     */
    error = -EINVAL;
  /*為ep分配內存并進行初始化*/
    if (size <= 0 || (error = ep_alloc(&ep)) < 0) {
        fd = error;
        goto error_return;
    }

    /*
     * Creates all the items needed to setup an eventpoll file. That is,
     * a file structure and a free file descriptor.
     */
   /*調用anon_inode_getfd新建一個struct file，也就是epoll可以看成一個文件（由* 于沒有任何文件系統，為匿名文件）。并且將主結構體struct eventpoll *ep放入* file->private項中進行保存（sys_epoll_ctl會取用）*/
    fd = anon_inode_getfd("[eventpoll]", &eventpoll_fops, ep);
    if (fd < 0)
        ep_free(ep);

error_return:
    DNPRINTK(3, (KERN_INFO "[%p] eventpoll: sys_epoll_create(%d) = %dn",
             current, size, fd));

    return fd;
}

epoll_ctl

asmlinkage long sys_epoll_ctl(int epfd, int op, int fd,
                  struct epoll_event __user *event)
{
    int error;
    struct file *file, *tfile;
    struct eventpoll *ep;
    struct epitem *epi;
    struct epoll_event epds;

    DNPRINTK(3, (KERN_INFO "[%p] eventpoll: sys_epoll_ctl(%d, %d, %d, %p)n",
             current, epfd, op, fd, event));

    error = -EFAULT;
  /*判斷參數合法性，將__user *event 復制給epds*/
    if (ep_op_has_event(op) &&
        copy_from_user(&epds, event, sizeof(struct epoll_event)))
        goto error_return;

    /* Get the "struct file *" for the eventpoll file */
    error = -EBADF;
    file = fget(epfd); /*epoll fd對應的文件對象*/
    if (!file)
        goto error_return;

    /* Get the "struct file *" for the target file */
    tfile = fget(fd); /*fd對應的文件對象*/
    if (!tfile)
        goto error_fput;

    /* The target file descriptor must support poll */
    error = -EPERM;
    if (!tfile->f_op || !tfile->f_op->poll)
        goto error_tgt_fput;

  ...

    /*
     * At this point it is safe to assume that the "private_data" contains
     * our own data structure.
     */
    ep = file->private_data; /*在create時存入進去的（anon_inode_getfd），現在取用。*/

    mutex_lock(&ep->mtx);

    /*
     * Try to lookup the file inside our RB tree, Since we grabbed "mtx"
     * above, we can be sure to be able to use the item looked up by
     * ep_find() till we release the mutex.
     */
    epi = ep_find(ep, tfile, fd); /*防止重復添加（在ep的紅黑樹中查找是否已經存在這個fd）*/

    switch (op) {
    case EPOLL_CTL_ADD: /*新增一個監聽fd*/
        if (!epi) {
            epds.events |= POLLERR | POLLHUP; /*默認包含POLLERR和POLLHUP事件*/

            error = ep_insert(ep, &epds, tfile, fd); /*在ep的紅黑樹中插入這個fd對應的epitm結構體。*/
        } else /*重復添加（在ep的紅黑樹中查找已經存在這個fd）。*/
            error = -EEXIST;
        break;

  ...

    }

  ...

    return error;
}

其中ep_insert的實現如下：

```c
static int ep_insert(struct eventpoll *ep, struct epoll_event *event,
             struct file *tfile, int fd)
{
    int error, revents, pwake = 0;
    unsigned long flags;
    struct epitem *epi;
    struct ep_pqueue epq;

    error = -ENOMEM;
  /*分配一個epitem結構體來保存每個存入的fd*/
    if (!(epi = kmem_cache_alloc(epi_cache, GFP_KERNEL)))
        goto error_return;

    /* Item initialization follow here ... */
  /*初始化該結構體*/
    INIT_LIST_HEAD(&epi->rdllink);
    INIT_LIST_HEAD(&epi->fllink);
    INIT_LIST_HEAD(&epi->pwqlist);
    epi->ep = ep;
    ep_set_ffd(&epi->ffd, tfile, fd);
    epi->event = *event;
    epi->nwait = 0;
    epi->next = EP_UNACTIVE_PTR;

    /* Initialize the poll table using the queue callback */
    epq.epi = epi;
  /*安裝poll回調函數*/
    init_poll_funcptr(&epq.pt, ep_ptable_queue_proc);

    /*
     * Attach the item to the poll hooks and get current event bits.
     * We can safely use the file* here because its usage count has
     * been increased by the caller of this function. Note that after
     * this operation completes, the poll callback can start hitting
     * the new item.
     */
   /*
   * 調用poll函數來獲取當前事件位，其實是利用它來調用注冊函數ep_ptable_queue_proc（poll_wait中調用）。
   * 如果fd是套接字，f_op為socket_file_ops，poll函數是sock_poll()。
   * 如果是TCP套接字的話，進而會調用到tcp_poll()函數。此處調用poll函數查看當前文件描述符的狀態，存儲在revents中。
   * 在poll的處理函數(tcp_poll())中，會調用sock_poll_wait()，
   *  在sock_poll_wait()中會調用到epq.pt.qproc指向的函數，也就是ep_ptable_queue_proc()。
   */
    revents = tfile->f_op->poll(tfile, &epq.pt);

    /* Add the current item to the list of active epoll hook for this file */
    spin_lock(&tfile->f_ep_lock);
    list_add_tail(&epi->fllink, &tfile->f_ep_links);
    spin_unlock(&tfile->f_ep_lock);

    /*
     * Add the current item to the RB tree. All RB tree operations are
     * protected by "mtx", and ep_insert() is called with "mtx" held.
     */
    ep_rbtree_insert(ep, epi); /*將該epi插入到ep的紅黑樹中*/

    /* We have to drop the new item inside our item list to keep track of it */
    spin_lock_irqsave(&ep->lock, flags);

    /* If the file is already "ready" we drop it inside the ready list */
  /*
  * revents & event->events：剛才fop->poll的返回值中標識的事件有用戶event關心的事件發生。
  * !ep_is_linked(&epi->rdllink)：epi的ready隊列中有數據。ep_is_linked用于判斷隊列是否為空。
  */

  /* 如果要監視的文件狀態已經就緒并且還沒有加入到就緒隊列中,則將當前的epitem加入到就緒隊列中.如果有進程正在等待該文件的狀態就緒,則喚醒一個等待的進程。  */
    if ((revents & event->events) && !ep_is_linked(&epi->rdllink)) {
    /*將當前epi插入到ep->ready隊列中。*/
        list_add_tail(&epi->rdllink, &ep->rdllist);

        /* Notify waiting tasks that events are available */
    /* 如果有進程正在等待文件的狀態就緒，也就是調用epoll_wait睡眠的進程正在等待，則喚醒一個等待進程。waitqueue_active(q) 等待隊列q中有等待的進程返回1，否則返回0。*/
        if (waitqueue_active(&ep->wq))
            wake_up_locked(&ep->wq);
    /*  如果有進程等待eventpoll文件本身（???）的事件就緒，則增加臨時變量pwake的值，pwake的值不為0時，在釋放lock后，會喚醒等待進程。 */
        if (waitqueue_active(&ep->poll_wait))
            pwake++;
    }

    spin_unlock_irqrestore(&ep->lock, flags);

    /* We have to call this outside the lock */
    if (pwake)
  /*喚醒等待eventpoll文件狀態就緒的進程*/
        ep_poll_safewake(&psw, &ep->poll_wait);

    DNPRINTK(3, (KERN_INFO "[%p] eventpoll: ep_insert(%p, %p, %d)n",
             current, ep, tfile, fd));

    return 0;

...
}

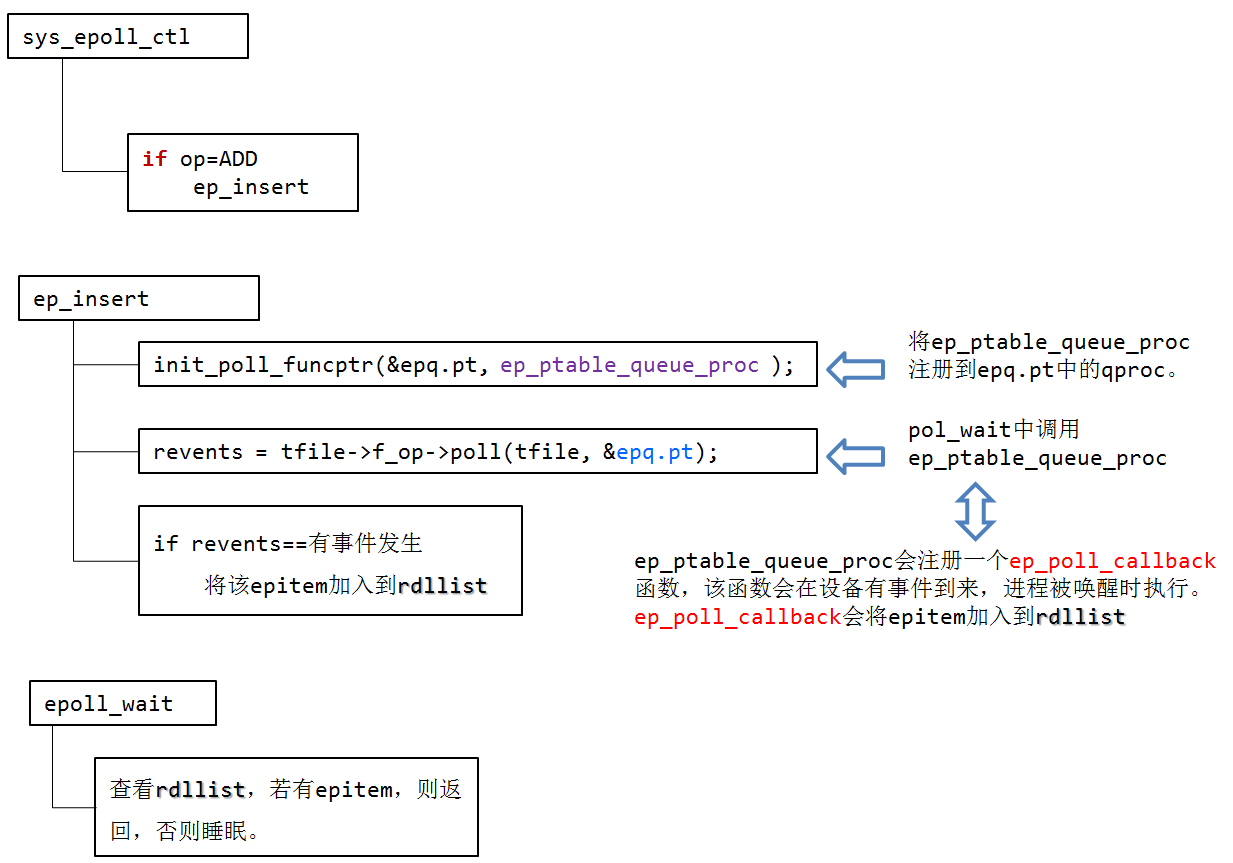

init_poll_funcptr(&epq.pt, ep_ptable_queue_proc);和revents = tfile->f_op->poll(tfile, &epq.pt);這兩個函數將ep_ptable_queue_proc注冊到epq.pt中的qproc。

typedef struct poll_table_struct {

poll_queue_proc qproc;

unsigned long key;

}poll_table;

執行f_op->poll(tfile, &epq.pt)時，XXX_poll(tfile, &epq.pt)函數會執行poll_wait()，poll_wait()會調用epq.pt.qproc函數，即ep_ptable_queue_proc。

更多Linux內核視頻教程文檔資料免費領取后臺私信【內核】自行獲取。

內核學習網站：

Linux內核源碼/內存調優/文件系統/進程管理/設備驅動/網絡協議棧-學習視頻教程-騰訊課堂

ep_ptable_queue_proc函數如下：

/*當poll醒來時就回調用該函數,在文件操作中的poll函數中調用，將epoll的回調函數加入到目標文件的喚醒隊列中。如果監視的文件是套接字，參數whead則是sock結構的sk_sleep成員的地址*/
static void ep_ptable_queue_proc(struct file *file, wait_queue_head_t *whead,
                 poll_table *pt)
{
  /*pt獲取struct ep_queue的epi字段。*/
    struct epitem *epi = ep_item_from_epqueue(pt);
    struct eppoll_entry *pwq;

    if (epi->nwait >= 0 && (pwq = kmem_cache_alloc(pwq_cache, GFP_KERNEL))) {
        init_waitqueue_func_entry(&pwq->wait, ep_poll_callback);
        pwq->whead = whead;
        pwq->base = epi;
        add_wait_queue(whead, &pwq->wait);
        list_add_tail(&pwq->llink, &epi->pwqlist);
        epi->nwait++;
    } else {
        /* We have to signal that an error occurred */
    /*如果分配內存失敗，則將nwait置為-1，表示發生錯誤，即內存分配失敗，或者已發生錯誤*/
        epi->nwait = -1;
    }
}

其中struct eppoll_entry定義如下：

struct eppoll_entry {

   struct list_head llink;

   struct epitem *base;

   wait_queue_t wait;

   wait_queue_head_t *whead;

};

ep_ptable_queue_proc 函數完成 epitem 加入到特定文件的wait隊列任務。
ep_ptable_queue_proc有三個參數：

struct file *file;              該fd對應的文件對象

wait_queue_head_t *whead;      該fd對應的設備等待隊列（同select中的mydev->wait_address）

poll_table *pt;                 f_op->poll(tfile, &epq.pt)中的epq.pt

在ep_ptable_queue_proc函數中，引入了另外一個非常重要的數據結構eppoll_entry。eppoll_entry主要完成epitem和epitem事件發生時的callback（ep_poll_callback）函數之間的關聯。首先將eppoll_entry的whead指向fd的設備等待隊列（同select中的wait_address），然后初始化eppoll_entry的base變量指向epitem，最后通過add_wait_queue將epoll_entry掛載到fd的設備等待隊列上。完成這個動作后，epoll_entry已經被掛載到fd的設備等待隊列。

由于ep_ptable_queue_proc函數設置了等待隊列的ep_poll_callback回調函數。所以在設備硬件數據到來時，硬件中斷處理函數中會喚醒該等待隊列上等待的進程時，會調用喚醒函數ep_poll_callback

static int ep_poll_callback(wait_queue_t *wait, unsigned mode, int sync, void *key)
{
    int pwake = 0;
    unsigned long flags;
    struct epitem *epi = ep_item_from_wait(wait);
    struct eventpoll *ep = epi->ep;

    spin_lock_irqsave(&ep->lock, flags);

    /*
     * If the event mask does not contain any poll(2) event, we consider the
     * descriptor to be disabled. This condition is likely the effect of the
     * EPOLLONESHOT bit that disables the descriptor when an event is received,
     * until the next EPOLL_CTL_MOD will be issued.
     */
    if (!(epi->event.events & ~EP_PRIVATE_BITS))
        goto out_unlock;

  ...

    /* If this file is already in the ready list we exit soon */
    if (ep_is_linked(&epi->rdllink))
        goto is_linked;
  /*將該fd加入到epoll監聽的就緒鏈表中*/
    list_add_tail(&epi->rdllink, &ep->rdllist);

is_linked:
    /*
     * Wake up ( if active ) both the eventpoll wait list and the ->poll()
     * wait list.
     */
   /*喚醒調用epoll_wait()函數時睡眠的進程。用戶層epoll_wait(...) 超時前返回。*/
    if (waitqueue_active(&ep->wq))
        wake_up_locked(&ep->wq);
    if (waitqueue_active(&ep->poll_wait))
        pwake++;

out_unlock:
    spin_unlock_irqrestore(&ep->lock, flags);

    /* We have to call this outside the lock */
    if (pwake)
        ep_poll_safewake(&psw, &ep->poll_wait);

    return 1;
}

epoll_wait

epoll_wait實現如下：

asmlinkage long sys_epoll_wait(int epfd, struct epoll_event __user *events,
                   int maxevents, int timeout)
{
    int error;
    struct file *file;
    struct eventpoll *ep;


    /* The maximum number of event must be greater than zero */
    if (maxevents <= 0 || maxevents > EP_MAX_EVENTS)
        return -EINVAL;

    /* Verify that the area passed by the user is writeable */
  /* 檢查用戶空間傳入的events指向的內存是否可寫。參見__range_not_ok()。*/
    if (!access_ok(VERIFY_WRITE, events, maxevents * sizeof(struct epoll_event))) {
        error = -EFAULT;
        goto error_return;
    }

    /* Get the "struct file *" for the eventpoll file */
  /* 獲取epfd對應的eventpoll文件的file實例，file結構是在epoll_create中創建。 */
    error = -EBADF;
    file = fget(epfd);
    if (!file)
        goto error_return;

    /*
     * We have to check that the file structure underneath the fd
     * the user passed to us _is_ an eventpoll file.
     */
    /* 通過檢查epfd對應的文件操作是不是eventpoll_fops 來判斷epfd是否是一個eventpoll文件。如果不是則返回EINVAL錯誤。 */
    error = -EINVAL;
    if (!is_file_epoll(file))
        goto error_fput;

    /*
     * At this point it is safe to assume that the "private_data" contains
     * our own data structure.
     */
    ep = file->private_data;

    /* Time to fish for events ... */
    error = ep_poll(ep, events, maxevents, timeout);

error_fput:
    fput(file);
error_return:

    return error;
}

ep_poll

epoll_wait調用ep_poll，ep_poll實現如下：

static int ep_poll(struct eventpoll *ep, struct epoll_event __user *events,
           int maxevents, long timeout)
{
    int res, eavail;
    unsigned long flags;
    long jtimeout;
    wait_queue_t wait;

    /*
     * Calculate the timeout by checking for the "infinite" value ( -1 )
     * and the overflow condition. The passed timeout is in milliseconds,
     * that why (t * HZ) / 1000.
     */
   /* timeout是以毫秒為單位，這里是要轉換為jiffies時間。這里加上999(即1000-1)，是為了向上取整。 */
    jtimeout = (timeout < 0 || timeout >= EP_MAX_MSTIMEO) ?
        MAX_SCHEDULE_TIMEOUT : (timeout * HZ + 999) / 1000;

retry:
    spin_lock_irqsave(&ep->lock, flags);

    res = 0;
    if (list_empty(&ep->rdllist)) {
        /*
         * We don't have any available event to return to the caller.
         * We need to sleep here, and we will be wake up by
         * ep_poll_callback() when events will become available.
         */
   /* 沒有事件，所以需要睡眠。當有事件到來時，睡眠會被ep_poll_callback函數喚醒。*/
        init_waitqueue_entry(&wait, current); /*將current進程放在wait這個等待隊列中。*/
        wait.flags |= WQ_FLAG_EXCLUSIVE;
   /* 將當前進程加入到eventpoll的等待隊列中，等待文件狀態就緒或直到超時，或被信號中斷。 */
        __add_wait_queue(&ep->wq, &wait);

        for (;;) {
            /*
             * We don't want to sleep if the ep_poll_callback() sends us
             * a wakeup in between. That's why we set the task state
             * to TASK_INTERRUPTIBLE before doing the checks.
             */
       /* 執行ep_poll_callback()喚醒時應當需要將當前進程喚醒，所以當前進程狀態應該為“可喚醒”TASK_INTERRUPTIBLE  */
            set_current_state(TASK_INTERRUPTIBLE);
       /* 如果就緒隊列不為空，也就是說已經有文件的狀態就緒或者超時，則退出循環。*/
            if (!list_empty(&ep->rdllist) || !jtimeout)
                break;
       /* 如果當前進程接收到信號，則退出循環，返回EINTR錯誤 */
            if (signal_pending(current)) {
                res = -EINTR;
                break;
            }

            spin_unlock_irqrestore(&ep->lock, flags);
       /*
        * 主動讓出處理器，等待ep_poll_callback()將當前進程喚醒或者超時,返回值是剩余的時間。
        * 從這里開始當前進程會進入睡眠狀態，直到某些文件的狀態就緒或者超時。
        * 當文件狀態就緒時，eventpoll的回調函數ep_poll_callback()會喚醒在ep->wq指向的等待隊列中的進程。
       */
            jtimeout = schedule_timeout(jtimeout);
            spin_lock_irqsave(&ep->lock, flags);
        }
        __remove_wait_queue(&ep->wq, &wait);

        set_current_state(TASK_RUNNING);
    }

    /* Is it worth to try to dig for events ? */
  /*
    * ep->ovflist鏈表存儲的向用戶傳遞事件時暫存就緒的文件。
    * 所以不管是就緒隊列ep->rdllist不為空，或者ep->ovflist不等于
    * EP_UNACTIVE_PTR，都有可能現在已經有文件的狀態就緒。
    * ep->ovflist不等于EP_UNACTIVE_PTR有兩種情況，一種是NULL，此時
    * 可能正在向用戶傳遞事件，不一定就有文件狀態就緒，
    * 一種情況時不為NULL，此時可以肯定有文件狀態就緒，
    * 參見ep_send_events()。
    */
    eavail = !list_empty(&ep->rdllist);

    spin_unlock_irqrestore(&ep->lock, flags);

    /*
     * Try to transfer events to user space. In case we get 0 events and
     * there's still timeout left over, we go trying again in search of
     * more luck.
     */
   /* 如果沒有被信號中斷，并且有事件就緒，但是沒有獲取到事件(有可能被其他進程獲取到了)，并且沒有超時，則跳轉到retry標簽處，重新等待文件狀態就緒。 */
    if (!res && eavail &&
        !(res = ep_send_events(ep, events, maxevents)) && jtimeout)
        goto retry;

  /* 返回獲取到的事件的個數或者錯誤碼 */
    return res;
}

ep_send_events()函數向用戶空間發送就緒事件。

ep_send_events()函數將用戶傳入的內存簡單封裝到ep_send_events_data結構中，然后調用ep_scan_ready_list()將就緒隊列中的事件傳入用戶空間的內存。 用戶空間訪問這個結果，進行處理。
